GoogleTest: C++ unit test framework

GoogleTest Installation:

This tutorial assumes that you have a C++ compiler and build tools installed on your system.

Download GoogleTest: gtest-1.7.0.zip

GoogleTest:

Installation: install to /opt/gtest/...

unzip gtest-1.7.0.zip
cd gtest-1.7.0
sudo mkdir /opt/gtest /opt/gtest/include /opt/gtest/lib
./configure --prefix=/opt/gtest
make
sudo cp -a include/gtest/ /opt/gtest/include
sudo cp -a lib/.libs/* /opt/gtest/lib
rm /opt/gtest/lib/libgtest.la
rm /opt/gtest/lib/libgtest_main.la
sudo cp -a lib/libgtest.la /opt/gtest/lib
sudo cp -a lib/libgtest_main.la /opt/gtest/lib

Note: cp flag "-a" preserves symbolic links

You can also locate GoogleTest in global user directories /use/include and /usr/lib. I personally don't mix package controlled system software with non-package controlled software and thus I use /opt/gtest and not the system areas.

GoogleTest Example:

Google Test is a framework in which we write a unit test driver to call and test C++ class methods.

Example C++ Classes to Test:

The C++ classes which will be tested by Google Test. The total application will not be tested although it is listed.

File: src/Addition.hpp

1#ifndef _ADDITION_HPP_
2#define _ADDITION_HPP_
3class Addition
4{
5public:
6    static int twoValues(const int x, const int y);
7};
8#endif

File: src/Addition.cpp

1#include "Addition.h"
2
3int
4Addition::twoValues(const int x, const int y)
5{
6    return x + y;
7}

File: src/Multiply.hpp

1#ifndef _MULTIPLY_HPP_
2#define _MULTIPLY_HPP_
3class Multiply
4{
5public:
6    static int twoValues(const int x, const int y);
7};
8#endif

File: src/Multiply.cpp

1#include "Multiply.h"
2
3int
4Multiply::twoValues(const int x, const int y)
5{
6    return x * y;
7}

File: src/ExampleApp.cpp

01#include "Addition.hpp"
02#include "Multiply.hpp"
03
04#include <stdio.h>
05
06int main()
07{
08    int x = 4;
09    int y = 5;
10
11    int z1 = Addition::twoValues(x,y);
12    printf("\nAddition Result: %d\n", z1);
13
14    int z2 = Multiply::twoValues(x,y);
15    printf("Multiply Result: %d\n", z2);
16
17    delete corporation;
18    return 0;
19}

File: src/Makefile

CXX = g++
CXXFLAGS = -g
INCS = -I./
OBJS = Addition.o Multiply.o

exampleapp: ExampleApp.cpp $(OBJS)
	$(CXX) $(CXXFLAGS) -o exampleapp ExampleApp.cpp $(OBJS)

.cpp.o:
	$(CXX) $(CXXFLAGS) -c $< -o $@ $(INCS)

clean:
	rm *.o exampleapp gmon.out

Compile: make
Run: exampleapp

GoogleTest Unit Test Source:

Program main() to specify tests to run: Main_TestAll.cpp
Classes to perform the unit tests:
- Addition_Test.cpp
- Multiply_Test.cpp

The GoogleTest framework uses macros to define tests and apply tests:

GoogleTest support tests (TEST(class,test_name)) and test frameworks (TEST_F(class,test_name)). This tutorial will use the more extensive and complete test framework. The framework employs a user written test class derived from ::testing::Test which supplies SetUp() and TearDown() functions.

Tests:

ASSERT_XXX(): If assertion fails then processing of test terminate.
EXPECT_XXX(): nonfatal failure, allowing processing to continue.

Test	Fatal	NonFatal
True	`ASSERT_TRUE(condition)`	`EXPECT_TRUE(condition)`
False	`ASSERT_FALSE(condition)`	`EXPECT_FALSE(condition)`
Equal	`ASSERT_EQ(arg1,arg2)`	`EXPECT_EQ(arg1,arg2)`
Not Equal	`ASSERT_NE(arg1,arg2)`	`EXPECT_NE(arg1,arg2)`
Less Than	`ASSERT_LT(arg1,arg2)`	`EXPECT_LT(arg1,arg2)`
Less Than or Equal	`ASSERT_LE(arg1,arg2)`	`EXPECT_LE(arg1,arg2)`
Greater Than	`ASSERT_GT(arg1,arg2)`	`EXPECT_GT(arg1,arg2)`
Greater Than or Equal	`ASSERT_GE(arg1,arg2)`	`EXPECT_GE(arg1,arg2)`
C String Equal	`ASSERT_STREQ(str1,str2)`	`EXPECT_STREQ(str1,str2)`
C String Not Equal	`ASSERT_STRNE(str1,str2)`	`EXPECT_STRNE(str1,str2)`
C String Case Equal	`ASSERT_STRCASEEQ(str1,str2)`	`EXPECT_STRCASEEQ(str1,str2)`
C String Case Not Equal	`ASSERT_STRCASENE(str1,str2)`	`EXPECT_STRCASENE(str1,str2)`
Verify that exception is thrown	`ASSERT_THROW(statement,exception_type)`	`EXPECT_THROW(statement,exception_type)`
Verify that exception is thrown	`ASSERT_ANY_THROW(statement)`	`EXPECT_ANY_THROW(statement)`
Verify that exception is NOT thrown	`ASSERT_NO_THROW(statement)`	`EXPECT_NO_THROW(statement)`

See the GoogleTest advanced guide for more "EXPECT" and "ASSERT" options.

Unit Test Code:

File: test/src/Main_TestAll.cpp

1#include <limits.h>
2#include "gtest/gtest.h"
3
4int main(int argc, char **argv) {
5  ::testing::InitGoogleTest(&argc, argv);
6  return RUN_ALL_TESTS();
7}

File: test/src/Addition_Test.cpp

01#include <limits.h>
02#include "gtest/gtest.h"
03#include "Addition.h"
04
05class AdditionTest : public ::testing::Test {
06 protected:
07  virtual void SetUp() {
08  }
09
10  virtual void TearDown() {
11    // Code here will be called immediately after each test
12    // (right before the destructor).
13  }
14};
15
16TEST_F(AdditionTest,twoValues){
17    const int x = 4;
18    const int y = 5;
19    Addition addition;
20    EXPECT_EQ(9,addition.twoValues(x,y));
21    EXPECT_EQ(5,addition.twoValues(2,3));
22}

File: test/src/Multiply_Test.cpp

01#include <limits.h>
02#include "gtest/gtest.h"
03#include "Multiply.h"
04
05class MultiplyTest : public ::testing::Test {
06 protected:
07  virtual void SetUp() {
08  }
09
10  virtual void TearDown() {
11  }
12};
13
14TEST_F(MultiplyTest,twoValues){
15    const int x = 4;
16    const int y = 5;
17    Multiply multiply;
18    EXPECT_EQ(20,multiply.twoValues(x,y));
19    EXPECT_EQ(6,multiply.twoValues(2,3));
20}

File: test/src/Makefile

CXX = g++
CXXFLAGS = -g -L/opt/gtest/lib -lgtest -lgtest_main -lpthread
INCS = -I./ -I../../src -I/opt/gtest/include
OBJS = ../../src/Addition.o Addition_Test.o ../../src/Multiply.o Multiply_Test.o

testAll: $(OBJS)
	$(CXX) $(CXXFLAGS) $(INCS) -o testAll  Main_TestAll.cpp $(OBJS)

.cpp.o:
	$(CXX) $(CXXFLAGS) -c $< -o $@ $(INCS)

clean:
	rm testAll *.o testAll.xml

Compile: make
Run: testAll --gtest_output="xml:./testAll.xml"

[==========] Running 2 tests from 2 test cases.
[----------] Global test environment set-up.
[----------] 1 test from MultiplyTest
[ RUN      ] MultiplyTest.twoValues
[       OK ] MultiplyTest.twoValues (5 ms)
[----------] 1 test from MultiplyTest (5 ms total)

[----------] 1 test from AdditionTest
[ RUN      ] AdditionTest.twoValues
[       OK ] AdditionTest.twoValues (4 ms)
[----------] 1 test from AdditionTest (4 ms total)

[----------] Global test environment tear-down
[==========] 2 tests from 2 test cases ran. (9 ms total)
[  PASSED  ] 2 tests.

GoogleTest XML reporting:

The following is the XML output from GoogleTest in JUnit format: testAll --gtest_output="xml:./testAll.xml"

Output File: test/src/testAll.xml

1<?xml version="1.0" encoding="UTF-8"?>
2<testsuites tests="2" failures="0" disabled="0" errors="0" timestamp="2014-09-29T19:16:59" time="0" name="AllTests">
3  <testsuite name="MultiplyTest" tests="1" failures="0" disabled="0" errors="0" time="0">
4    <testcase name="twoValues" status="run" time="0" classname="MultiplyTest" />
5  </testsuite>
6  <testsuite name="AdditionTest" tests="1" failures="0" disabled="0" errors="0" time="0">
7    <testcase name="twoValues" status="run" time="0" classname="AdditionTest" />
8  </testsuite>
9</testsuites>

The native Jenkins JUnit XML interpreter can interpret this XML to present test results plots.

Continuous Integration with Jenkins:

Jenkins Ant file to compile and run a GoogleTest test:

File: ./build.xml

01<?xml version="1.0" encoding="UTF-8"?>
02<project name="CppApp" default="jenkins" basedir=".">
03    <description>
04        Jenkins Ant file for CppApp
05    </description>
06  <!-- set global properties for this build -->
07  <property name="make.cmd" value="/usr/bin/make"/>
08  <property name="build.native" value="./src"/>
09  <property name="build.test" value="./test/src"/>
10
11  <target name="init">
12    <!-- Create the time stamp -->
13    <tstamp/>
14  </target>
15
16  <target name="compile" description="compile the source" >
17    <exec dir="${build.native}" executable="${make.cmd}" failonerror="true">
18    </exec>
19  </target>
20
21  <arget name="compile-test" description="compile the source" depends="compile">
22    <exec dir="${build.test}" executable="${make.cmd}" failonerror="true">
23    </exec>
24  </target>
25
26  <target name="clean" description="clean up" >
27    <exec dir="${build.native}" executable="${make.cmd}" failonerror="false">
28      <arg value="clean"/>
29    </exec>
30    <exec dir="${build.test}" executable="${make.cmd}" failonerror="false">
31      <arg value="clean"/>
32    </exec>
33  </target>
34
35  <target name="run" description="Run application" depends="compile">
36    <exec dir="${build.native}" executable="exampleapp" failonerror="true">
37    </exec>
38  </target>
39
40  <target name="run-test" description="Run application" depends="compile-test">
41    <exec dir="${build.test}" executable="testAll" failonerror="true">
42      <arg line="--gtest_output="xml:./testAll.xml""/>
43    </exec>
44  </target>
45
46</project>

Building and running unit tests:

Build: ant
Test: ant run-test

GoogleTest presents its unit test output in JUnit format, a native format for Jenkins unit test reporting. The following is Jenkins configuration to plot JUnit results:

Jenkins Global Configuration:

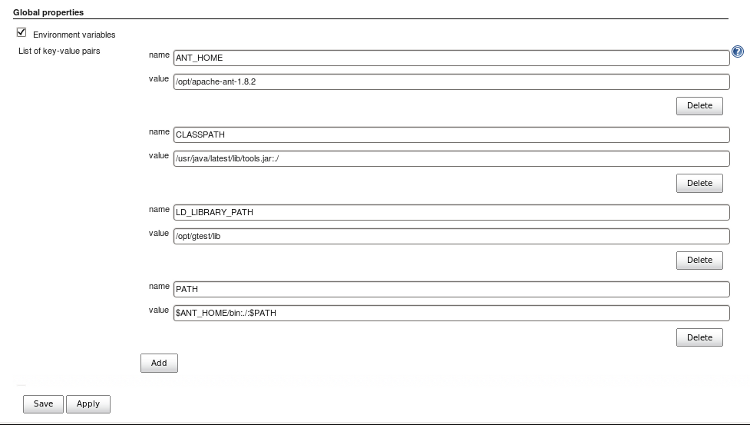

Jenkins -> Manage Jenkins -> Configure System:
Jenkins/Hudson JUnit configuration

Add the following for GoogleTest support:

LD_LIBRARY_PATH: /opt/gtest/lib
PATH: ./

[Potential Pitfall]: It the Jenkins PATH is not set to include the current working directory "./", you will get the error:

Execute failed: java.io.IOException: Cannot run program
error=2, No such file or directory

The user paths should be set as well:

File: ~/.bashrc (snipet)

...
...

if [ -d /opt/gtest/ ]
then
  export GTEST_HOME=/opt/gtest
  export LD_LIBRARY_PATH=$GTEST_HOME/lib:$LD_LIBRARY_PATH
fi

...
...

Jenkins Project Configuration:

Specify where the XML run results will be located.

Jenkins unit test reporting:

Note that there were two tests thus the count is two. Each test had multiple "EXPECT" statements but there were all part of the same test.

For more, see the YoLinux.com Tutorials Jenkins installation and configuration
