Yolinux.com Tutorial

Trac Plugins

Trac is a web based wiki, software bug and enhancement tracking system. It is written in Python with an architecture which allows extensibility through the use of software plugins.

This tutorial covers the installation and configuration of the following Trac plugins:

Trac Plugin Installation:

Trac plugins are available to enhance Trac functionality. The plugins require some Python infrastructure for installation. Install the Python package "setuptools" which includes command "easy_install".

Red Hat/CentOS/Fedora installation: The "setuptools" package is available as an RPM on the installation DVD or via YUM: yum install python-setuptools

Debian/Ubuntu installation: apt-get install python-setuptools

Source installation: On older systems or distributions which do not include "setuptools", one can download and install it from source. The following is an example for Red Hat Enterprise 4 / CentOS 4. Use one of the following two methods to install the command "/usr/bin/easy_install":

  1. Python script:
    • Download the Python script http://peak.telecommunity.com/dist/ez_setup.py
    • Run: python ez_setup.py
      This will download and run the script: setuptools-0.6c6-py2.3.egg which installs "easy_install".
  2. Egg script:
    • Download: http://cheeseshop.python.org/packages/2.4/s/setuptools/setuptools-0.6c6-py2.4.egg
    • As root: chmod +x setuptools-0.6c6-py2.3.egg
    • Run: ./setuptools-0.6c6-py2.3.egg

Documentation:

Trac Admin plugin page:

List Trac plugins installed: Select "Admin" tab + "Plugins"

Trac plugin page

Trac "Graphviz" plugin:

This plugin for Trac will render graphviz drawings within a Trac wiki or ticket page.

Trac Graphviz Plugin

Installation:

Use the command: easy_install http://trac-hacks.org/svn/graphvizplugin/0.13

Uses subversion. If required, set the proxy in your Subversion config file: ~/.subversion/servers

[global]
http-proxy-host = proxy.megacorp.com
http-proxy-port = 80

Install prerequisites:

Requires Graphviz RPMs and dependencies: http://www.graphviz.org/Download_linux_rhel.php
  • graphviz
    Graphviz dependencies (I installed both the i686 and x86_64 packages):
    • gtkglarea
    • gtkglarea2
    • gtkglarea2-devel
    • gtkglext-libs (RHEL6.1+ http://rpm.pbone.net/index.php3/stat/4/idpl/17458912/dir/centos_6/com/gtkglext-libs-1.2.0-11.el6.x86_64.rpm.html)
    • freeglut (http://rpm.pbone.net/index.php3/stat/4/idpl/15160534/dir/redhat_el_6/com/freeglut-2.4.0-9.el6.x86_64.rpm.html)
  • graphviz-devel
  • graphviz-doc
  • graphviz-gd
  • graphviz-graphs
  • graphviz-perl
  • graphviz-python
  • graphviz-tcl
  • webdot
  • gts
  • gts-devel
  • mod_python (Fast CGI for Python: Apache WSGI)
  • python-clearsilver


Configuration:

Add the following to the Trac configuration file: /srv/trac/projectx/conf/trac.ini
...

[graphviz]
cache_dir = /tmp/trac
cache_manager = yes

[components]
graphviz.* = enabled

...

Upgrade and restart:
  • trac-admin /srv/trac/projectx upgrade
  • service httpd restart

[Potential Pitfall]: You may get an error during operation due to a lack of access to /tmp/trac

Fix:
mkdir /tmp/trac
chown apache.apache /tmp/trac
If the system removes this directory periodically, this may have to be added to a cron job.

Add the following cron job file: /etc/cron.daily/trac-fix
#! /bin/sh
# Cron sjobs clean-up /tmp and delete a required
# directory for the Trac peer review plugin
if [ ! -d /tmp/trac ]; then
    mkdir /tmp/trac
    chown apache.apache /tmp/trac
fi
SELinux attributes: chcon system_u:object_r:bin_t:s0 /etc/cron.daily/trac-fix


Example of use:

Enter in Trac wiki markup within a Trac wiki page or Trac ticket posting:
...

{{{
#!graphviz
  digraph G {
    rankdir = "LR"
    UserAction [ URL=UserActionWikiPage ]
    App [
      URL="http://www.yolinux.com/"
      fontcolor=red
    ]
    UserAction -> App
    }
}}}

[[BR]]

{{{
#!graphviz
digraph G {Hello->World->Rules}
}}}

...

Note:
  • The URL spacifies the link for the text "UserAction" and "App". The URL UserActionWikiPage is the typical Trac camelcase link within Trac wiki markup to another wiki page.
  • The specification of "LR" is Left to Right. Default is vertical, top to bottom.

Displays in Trac ticket page as:

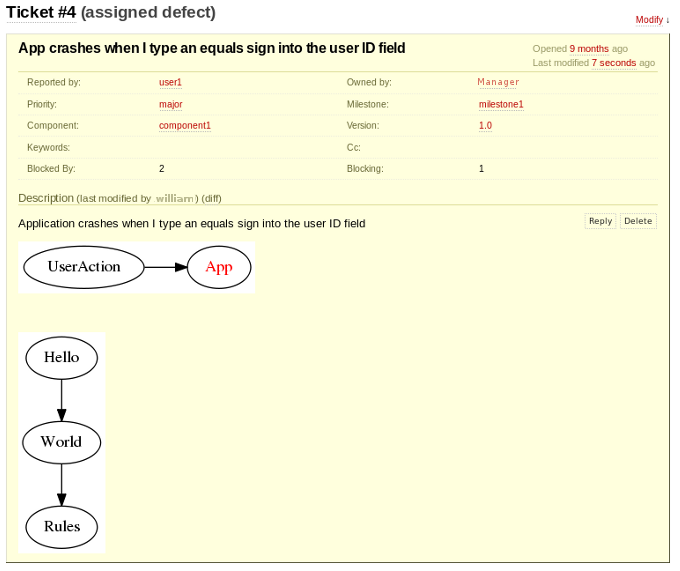

Trac Graphviz example

Trac "master tickets" plugin:

Installation:
  • RPM package: (Red Hat/CentOS):
    Plugin available as an RPM packages from Extra Packages for Enterprise Linux (EPEL)

    Install: rpm -ivh trac-mastertickets-plugin-xxxx.rpm

    or

  • Install from source:
    Download the MasterTickets source (Subversion) or MasterTickets on GitHub or by selecting the GitHub zip file link.
    $ unzip trac-mastertickets-master.zip
    $ cd trac-mastertickets-master
    $ python setup.py bdist_egg
    $ sudo easy_install dist/TracMasterTickets-3.0.3-py2.6.egg
    Processing TracMasterTickets-3.0.3-py2.6.egg
    creating /usr/lib/python2.6/site-packages/TracMasterTickets-3.0.3-py2.6.egg
    Extracting TracMasterTickets-3.0.3-py2.6.egg to
    /usr/lib/python2.6/site-packages
    Adding TracMasterTickets 3.0.3 to easy-install.pth file

    Installed /usr/lib/python2.6/site-packages/TracMasterTickets-3.0.3-py2.6.egg
    Processing dependencies for TracMasterTickets==3.0.3
    Finished processing dependencies for TracMasterTickets==3.0.3

Install Graphviz and dot:

A consequence of installing the "Graphviz" plugin is that all of the graphviz pre-requisites are also installed. The "Graphviz" plugin is not required or used by the "master tickets" plugin. If Graphviz and the dot command are not installed, install the following Linux packages:

Requires Graphviz RPMs and dependencies: http://www.graphviz.org/Download_linux_rhel.php
  • graphviz
    Graphviz dependencies (I installed both the i686 and x86_64 packages):
    • gtkglarea
    • gtkglarea2
    • gtkglarea2-devel
    • gtkglext-libs (RHEL6.1+ http://rpm.pbone.net/index.php3/stat/4/idpl/17458912/dir/centos_6/com/gtkglext-libs-1.2.0-11.el6.x86_64.rpm.html)
    • freeglut (http://rpm.pbone.net/index.php3/stat/4/idpl/15160534/dir/redhat_el_6/com/freeglut-2.4.0-9.el6.x86_64.rpm.html)
  • graphviz-devel
  • graphviz-doc
  • graphviz-gd
  • graphviz-graphs
  • graphviz-perl
  • graphviz-python
  • graphviz-tcl
  • webdot
  • gts
  • gts-devel
  • mod_python (Fast CGI for Python: Apache WSGI)
  • python-clearsilver


Configuration:

Master ticket plugin:

Add the following to the Trac configuration file: /srv/trac/projectx/conf/trac.ini
...

[mastertickets]
dot_path = /usr/bin/dot
graph_direction = TD

[ticket-custom]
blocking = text
blocking.label = Blocking
blockedby = text
blockedby.label = Blocked By

[graphviz]
cache_dir = /tmp/trac
cache_manager = yes

[components]
mastertickets.* = enabled
graphviz.* = enabled

...
TD options:
  • TD = Top Down
  • DT = Down Top
  • LR = Left Right
  • RL = Right Left

Upgrade and restart:
  • trac-admin /srv/trac/projectx upgrade
  • trac-admin /srv/trac/projectx wiki upgrade
  • sudo service httpd restart

Note that the Agile plug-in Agilo breaks operation of this plug-in.


Usage:
  1. Assign/Define ticket dependency (blocking/blocked by):

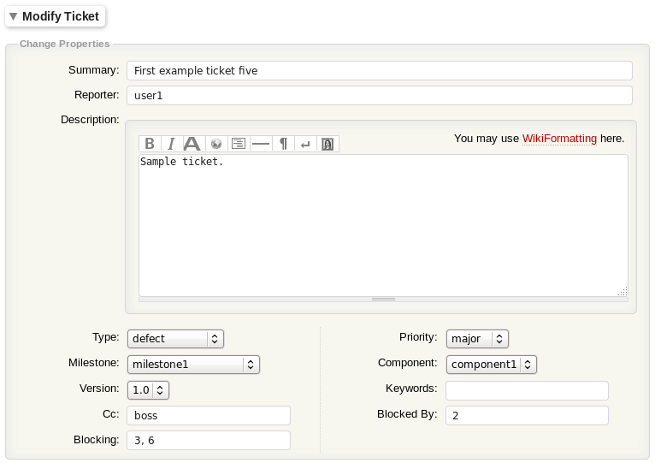

    Trac MasterTicket plugin: assign ticket dependencies
  2. View ticket:

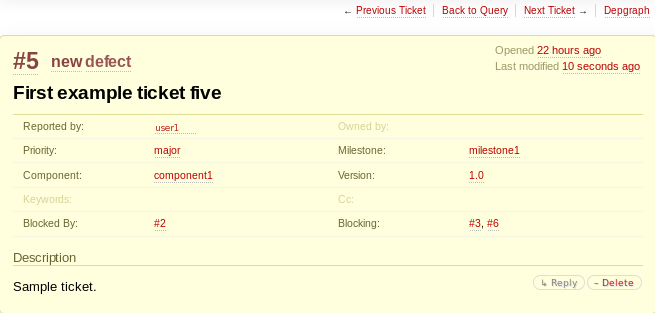

    Trac MasterTicket plugin: view ticket dependencies
  3. Show ticket dependency graph: (select "Depgraph" link in upper right corner):

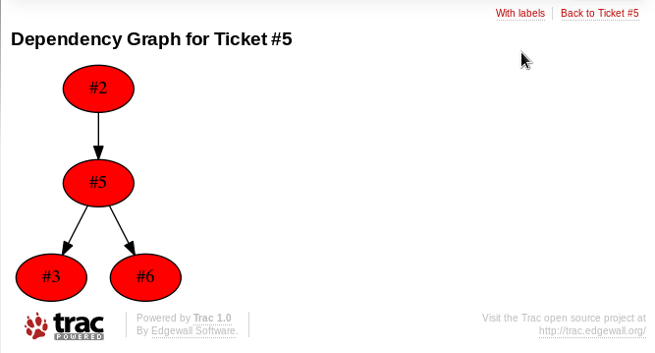

    Trac MasterTicket plugin: graph ticket dependencies
    Dependancy graph color codes:
    • Green: ticket is completed
    • Red: ticket not complete
    • Grey: ticket not part of dependency chain

Trac "peer review" plugin:

Installation:

Red Hat: available as RPM packages from Extra Packages for Enterprise Linux (EPEL)

Red Hat/CentOS/Fedora install: rpm -ivh trac-peerreview-plugin

Mint/Ubuntu/Debian: apt-get install trac-mastertickets trac-graphviz

Configuration:
Add the following to the Trac configuration file: /srv/trac/projectx/conf/trac.ini
...

[components]
codereview.* = enabled

...
Upgrade and restart:
  • trac-admin /srv/trac/projectx upgrade
  • trac-admin /srv/trac/projectx wiki upgrade
  • service httpd restart
  • trac-admin /srv/trac/projectx permission add user1 CODE_REVIEW_MGR
    (or for users CODE_REVIEW_DEV)
This generates a new item on the Trac toolbar: "Peer Review"

Note that the Agile plug-in Agilo breaks operation of this plug-ins.

Trac "webadmin" plugin installation:

This will no longer be required with Trac version 0.10 or later as it will be integrated into the Trac.

Installation:

  • Use Subversion to download latest webadmin plugin software:

    svn export http://svn.edgewall.com/repos/trac/sandbox/webadmin/

    This will create the directory webadmin/ and its contents.
  • cd webadmin
  • Install Trac plugin: easyinstall .

If installing from an egg file:

  • mv TracWebAdmin-0.1.2dev_r4240-py2.3.egg.zip TracWebAdmin-0.1.2dev_r4240-py2.3.egg
  • easy_install TracWebAdmin-0.1.2dev_r4240-py2.3.egg

Direct Trac to employ the component "webadmin". Add to end of file: /srv/trac/ProjectX/conf/trac.ini

...
..


[components]
webadmin.* = enabled



Apache configuration modification. File: /etc/httpd/conf.d/trac.conf

<Location "/trac">
        SetEnv TRAC_ENV "/srv/trac/projectX"
        SetEnv PYTHON_EGG_CACHE /srv/trac/projectX/egg_cache

...
..
</Location>

Create cache directory:
  • mkdir /srv/trac/ProjectX/egg_cache
  • chown apache.apache /srv/trac/ProjectX/egg_cache

Restart apache: service httpd restart

Test to see if plugin has been installed: python -c "import webadmin"
The proper response is no output. Error response: "ImportError: No module named webadmin"

The final step is to add the Trac administrator privileges:

trac-admin /srv/trac/ProjectX permission add user1 TRAC_ADMIN

Users who have been given "TRAC_ADMIN" privileges, will see an extra tab in the Trac toolbar interface labeled "Admin". Select this tab to access the "webadmin" interface to Trac. This interface will allow you to create components, associate components with roadmaps, etc.
