Linux Networking: Add a Network Interface Card (NIC)

A tutorial on the systems configuration of a Linus system required for an additional Ethernet Network Interface Card. This is typically done for redundancy (in case one fails), high availability and failover or for routing and network subdivision, isolation or gateway (see Linux networking gateway tutorial)

Ethernet Network Card Installation:

Typically an Ethernet network interface is built-in to most modern motherboards. Some computer systems, especially server systems, are equipped with two network interfaces built-in to the motherboard. Additional interfaces can be installed in extra PCI expansion slots.

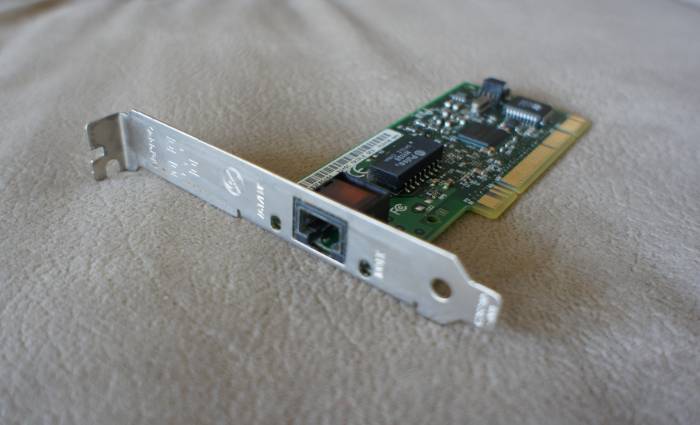

Ethernet NIC PCI card
Typical Ethernet NIC PCI card

Try the command lspci -vv to see if the hardware is detected properly, and which kernel module (if any) is being assigned:

01:00.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5764M Gigabit Ethernet PCIe (rev 10)
    Subsystem: Hewlett-Packard Company Device 1309
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 52
    Region 0: Memory at f7000000 (64-bit, non-prefetchable) [size=64K]
    Capabilities: <access denied>
    Kernel driver in use: tg3
    Kernel modules: tg3


...
...

37:09.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5782 Gigabit Ethernet (rev 03)
    Subsystem: Hewlett-Packard Company Device 000c
    Physical Slot: 5
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 32 (16000ns min), Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 21
    Region 0: Memory at f8000000 (64-bit, non-prefetchable) [size=64K]
    [virtual] Expansion ROM at f7100000 [disabled] [size=64K]
    Capabilities: <access denied>
    Kernel driver in use: tg3
    Kernel modules: tg3

or more specifically lspci -vv | grep Ethernet

01:00.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5764M Gigabit Ethernet PCIe (rev 10)
37:09.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5782 Gigabit Ethernet (rev 03)

Linux configuration for a new card:

The network configuration tools and network configuration files are different for Ubuntu/Debian vs Red Hat/Fedora based systems.

The following commands will start, stop or restart networking:
  • sudo /etc/init.d/networking start
  • sudo /etc/init.d/networking stop
  • sudo /etc/init.d/networking restart

Ubuntu network configuration:

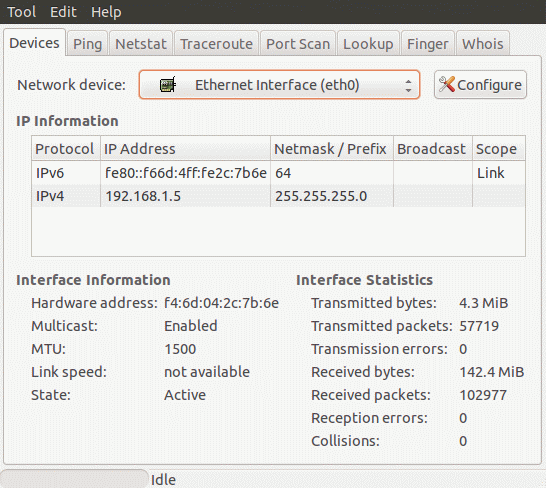

Ubuntu GUI network configuration tool: /usr/bin/gnome-nettool (apt-get install gnome-nettool)

Ubuntu network configuration GUI tool gnome-nettool

One can also configure Ubuntu systems by adding entries to the configuration file:
/etc/network/interfaces

Dynamic IP:
...
...

auto eth1
iface eth1 inet dhcp
Static IP:
...
...

auto eth1
iface eth1 inet static
address 192.168.1.2
netmask 255.255.255.0
network 192.168.1.0
broadcast 192.168.1.255
Address and netmask are required. The system can calculate defaults for the other values.

DNS configuration will be required in /etc/resolv.conf. For this and other networking configurations see the YoLinux Networking tutorial.

Red Hat / Fedora network configuration:

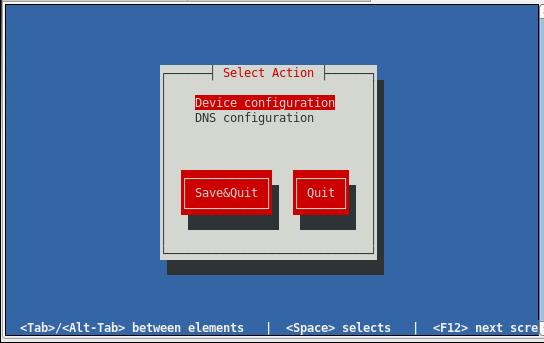

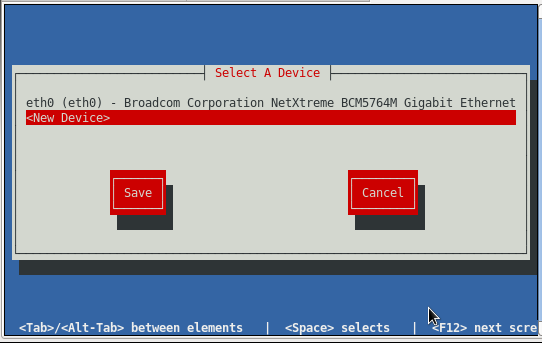

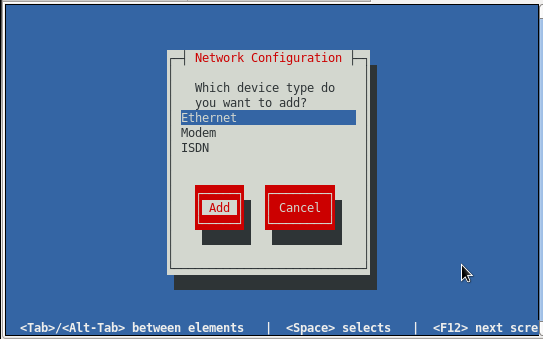

The most simple method of configuring Red Hat based distributions is by using the console based GUI tool:
system-config-network


Both static and dynamic configurations can be set. If configuring for DHCP, go to that line and pres the space bar. An asterisk "*" will appear to show that this option has been selected.

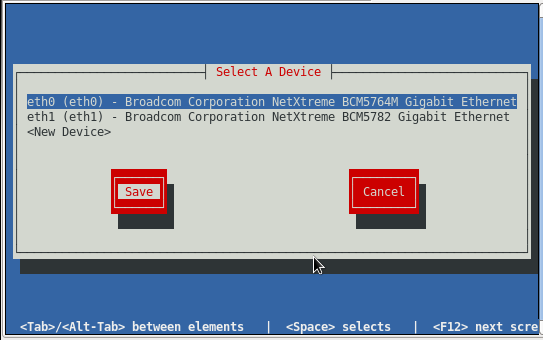

After device configuration, the new device will show up in the list.

Test interfaces using the commands ip or ifconfig:
  • /sbin/ip addr show
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
        link/ether fa:ac:14:24:5e:8d brd ff:ff:ff:ff:ff:ff
        inet 192.168.12.2/24 brd 192.168.12.255 scope global dynamic eth0
           valid_lft 77603sec preferred_lft 77603sec
        inet6 fe80::477:3e3e:d5fd:823a/64 scope link
           valid_lft forever preferred_lft forever
    3: eth1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN group default qlen 1000
        link/ether fa:ac:14:24:5e:8f brd ff:ff:ff:ff:ff:ff
    4: wlan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
        link/ether 28:b2:bd:36:a7:3b brd ff:ff:ff:ff:ff:ff

    OR
  • /sbin/ifconfig
    eth0      Link encap:Ethernet  HWaddr 64:31:50:24:41:A1
              inet addr:242.27.32.60  Bcast:242.27.32.255  Mask:255.255.255.0
              inet6 addr: fb80::6631:50ff:fb44:46a1/64 Scope:Link
              UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
              RX packets:845 errors:0 dropped:0 overruns:0 frame:0
              TX packets:191 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:158077 (154.3 KiB)  TX bytes:15619 (15.2 KiB)
              Interrupt:17

    eth1      Link encap:Ethernet  HWaddr 00:10:17:24:BF:77
              inet addr:192.168.1.5  Bcast:192.168.1.255  Mask:255.255.255.0
              UP BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:0 (0.0 b)  TX bytes:0 (0.0 b)
              Interrupt:21

    lo        Link encap:Local Loopback
              inet addr:127.0.0.1  Mask:255.0.0.0
              inet6 addr: ::1/128 Scope:Host
              UP LOOPBACK RUNNING  MTU:16436  Metric:1
              RX packets:330704 errors:0 dropped:0 overruns:0 frame:0
              TX packets:330704 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:917208006 (874.7 MiB)  TX bytes:917208006 (874.7 MiB)


The addition and configuration of the new Ethernet device will generate the new file:
/etc/sysconfig/network-scripts/ifcfg-eth1

DEVICE=eth1
BOOTPROTO=static
NETMASK=255.255.255.0
TYPE=Ethernet
HWADDR=00:10:17:24:bf:77
IPADDR=192.168.1.5
See /usr/share/doc/initscripts-*/sysconfig.txt for the explanation of all options.

The command ifup eth1 and ifdown eth1 are used to bring the new Ethernet interface card into service or offline.

DNS configuration will be required in /etc/resolv.conf. For this and other networking configurations see the YoLinux Networking tutorial.
