Jenkins for C++: tools and plugin configuration

Tools and plug-ins to support C++ projects

This tutorial covers the installation, configuration and use of the Jenkins build server for C++ software projects on Linux. C++ projects use unit test, code coverage and code inspection tools unique to C++.

DOxygen will be used for document generation, CppCheck will be used for source code inspection, CppUnit or Google Test can be used for unit test and a combination of gcov and gcovr and the Cobertura plugin will be used for code coverage. The dOxygen and CppCheck Jenkins plugins will also be employed for display of results. This tutorial will cover the installation and configuration for each.

Jenkins Tutorial Contents:
Introduction to Jenkins and C++ CI:

Jenkins can monitor your CM system to detect a check-in of C++ source code. Upon recognition of this change, Jenkins will update a local working directory of code and perform a series of build steps (e.g. "ant clean", "ant compile"). See our Jenkins installation and configuration tutorial.

This tutorial will cover the installation, configuration and use of tools, Jenkins plug-ins and their configuration to support the unique tools used for C++ software development. There are a plethora of C++ tools to auto-generate documents, perform unit tests, code reviews and execution code coverage. We will cover the most prominent tool for each and their integration with Jenkins Continuous Integration (CI). All builds in this tutorial will be driven by Apache Ant

Other related YoLinux.com Tutorials:
Jenkins logo

DOxygen:

DOxygen is a powerful auto-documentation tool for C++. Tagged comments and inferred information are gathered to develop HTML (also RTF, etc) source code documentation. When used in conjunction with Graphviz, simple UML class diagrams can be generated for a single class and its' relations.

Also see our YoLinux tutorial on tagging C++ for dOxygen.

The Jenkins dOxygen plugin will allow you to view doxygen documentation through Jenkins. Note that this plugin does not perform the document generation but just allows one to view the results as a link from within Jenkins.

  • Install Jenkins dOxygen plugin:
    • Jenkins (start page) + "Manage Jenkins" + "Manage Plugins".
    • Select the "Available" tab.
    • Select plugin "Doxygen" (under the "Build Reports" category) for installation.
    • Then select the "Install" button at the bottom of the page.

  • Configure Build:
    Add dOxygen document generation to your build by adding the ant target "doxygen".

    File: build.xml
    ...
    ...
      <property name="build.native" value="./"/>
      <property name="doxygen.cmd" value="/usr/bin/doxygen"/>

      <target name="clean" description="clean up" >
        <delete quiet="true">
          <fileset dir="Docs/html" includes="**/*" />
        </delete>
      </target>

      <target name="doxygen"
              description="Process documentation" >

        <exec executable="${doxygen.cmd}"
              dir="${build.native}"
              failonerror="false">
           <arg value="Doxygen.cfg"/>
        </exec>
      </target>

    ...
    ...


  • Configure dOxygen:
    DOxygen is typically installed on Linux systems during the initial install, with yum, by RPM or apt-get. This is detailed in the YoLinux Systems Administration tutorial.

    The generation of the dOxygen configuration file and settings are detailed in the YoLinux dOxygen and C++ tutorial.

    The Jenkins dOxygen plugin uses the dOxygen config file to locate the generated dOxygen documentation.

    [Potential Pitfall]: The dOxygen configuration file uses the directive "OUTPUT_DIRECTORY" to locate the output for the generated documentation. This may not have the correct directory prefix to match the Subversion base directory as viewed from Jenkins. Thus it may be necessary to create a new dOxygen configuration file to fool Jenkins into looking in the proper directory.

    Example: original dOxygen configuration file may reference the path as follows:

    File: Doxygen.cfg
    ...
    ...
    OUTPUT_DIRECTORY       = Docs
    ...
    ...

    In order for Jenkins the find the documentation files, generate a new dOxygen configuration will with the correct relative path:

    File: JenkinsDoxyfile.cfg
    # File to trick Jenkins dOxygen plugin to find HTML reports location
    PROJECT_NAME           = ProjectX
    OUTPUT_DIRECTORY       = ProjectX/Docs
    OUTPUT_LANGUAGE        = English
    GENERATE_HTML          = YES
    HTML_OUTPUT            = html

    This file only used to trick Jenkins into looking at the correct location and is not a proper dOxygen configuration file for generating documentation.

    Jenkins will now look in ProjectX/Docs/html/ for the files.

  • Jenkins Project Configuration:
    • Select your build job from the Jenkins home page dashboard.
    • Select "Configure" (top left hand side of page)
    • At the bottom of page under "Post-build Actions" select the "Publish Doxygen" box.
    • Set Doxygen config file:
      Doxygen path: ProjectX/Doxyfile.cfg
      Note that this is the configuration file used by dOxygen to generate the report.
    • Select the "Save" button to save this configuration.

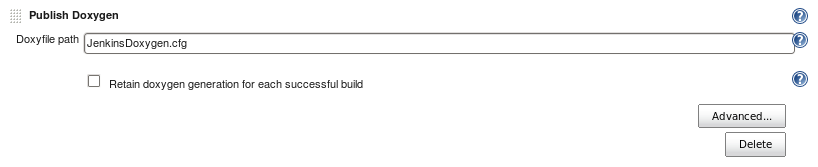

    DOxygen plugin configuration
    The dOxygen plugin will request the name of the dOxygen configuration file from which it will determine the path to the generated documents.

  • Jenkins Display:
    DOxygen plugin link
    The dOxygen plugin will generate the link shown
Jenkins Doxygen Plugin

[Potential Pitfall]: Jenkins version 1.4xx requires Java 1.5 or newer. If running on a Solaris 8 platform you will be limited to Java 1.5 as your latest version. Note that some plugins are compiled with later versions of Java and may cause unexpected errors.

FATAL: java.lang.String.isEmpty()Z
   java.lang.NoSuchMethodError: java.lang.String.isEmpty()Z
   at jenkins.plugins.doxygen.DoxygenDirecotryParser.getDoxygenGeneratedDir(DoxygenDirectoryParser.java:126)
In this error, the Doxygen plugin makes a call to isEmpty() which is a method available with Java 1.6 but not 1.5.
An alternative solution is to use the "sidebar link" to point to the location of the generated documents:
    /job/project-name/ws/doc-path/html/index.html

CppCheck:

CppCheck is used to find bad coding practices or potentially unintended behavior in C++ code.

  • Install CppCheck:

  • Install Jenkins CppCheck Plugin:
    • Select from the Jenkins (start page) + "Manage Jenkins" + "Manage Plugins". Now select the "Available" tab and select the CppCheck Plugin.
    • Select the "Install and Restart Jenkins" button.
    • CppCheck Plugin Info

  • Ant build:

    Add the following to your Ant build.xml file:

    <property name="build.native" value="./src"/>
    <property name="cppcheck.cmd" value="/usr/bin/cppcheck"/>

    ...
    ...

    <target name="cppcheck" description="C++ code check" >
        <exec dir="${build.native}" executable="${cppcheck.cmd}" failonerror="true">
          <arg line="--xml --xml-version=2 --enable=all --inconclusive --language=c++ *.cpp"/>
          <redirector error="cppcheck.xml"/>
        </exec>
    </target>

    Note:
    • Use CppCheck command line argument "--xml" to write results in XML to error stream. The ant redirector outputs this to a file.
    • CppCheck man page
    • A recursive directory scan can be used by specifying a directory instead of files. In the above example set build.native to "." and instead of specifying file targets (*.cpp), specify a directory (src). This will cause Cppcheck to recursively scan the directory "src" for files to check.

  • Jenkins Configuration:

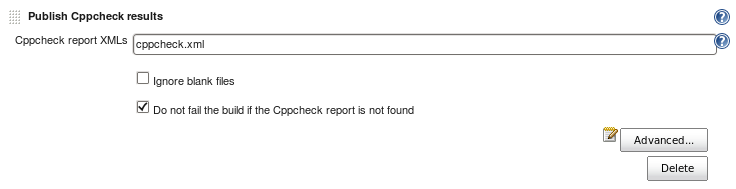

    Jenkins CppCheck configuration
    Enter the CppCheck "outputFile" which the plug-in will read to display results.

  • Results:

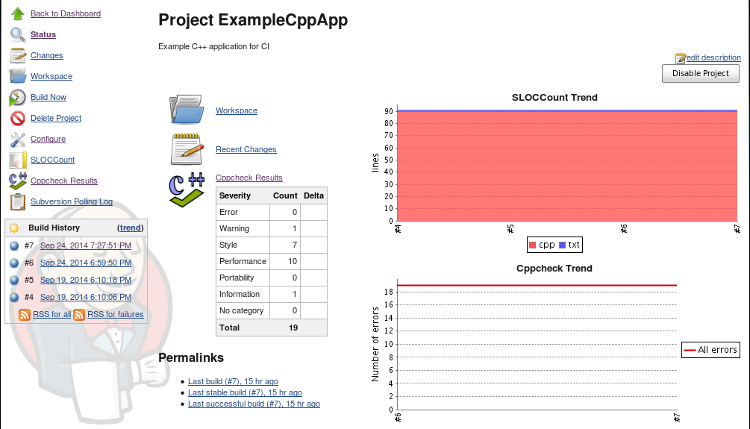

    Jenkins CppCheck display
    Select the "CppCheck Trend" chart to view the details:

Warnings Plugin:

This plugin reports the number of Gnu C++ compiler warnings and errors over time. Other compilers are also supported. This plugin can be used to generate a plot. No extra software is required as it just reports extra information about your C++ build.

  • Install Jenkins Warnings Plugin:
    • Select from the Jenkins (start page) + "Manage Jenkins" + "Manage Plugins". Now select the "Available" tab and select the Compiler Warnings Plugin.
    • Select the "Install and Restart Jenkins" button.
    • Warnings Plugin Info (scans console logs for warnings)

  • Jenkins Configuration:

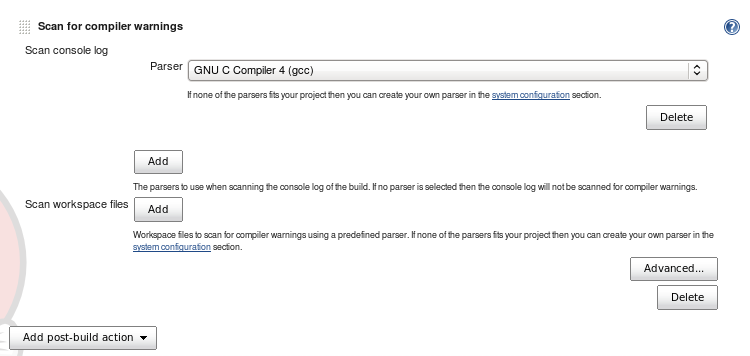

    Jenkins C++ Warnings configuration
    Specify your compiler (in this case GNU C)

  • Results:

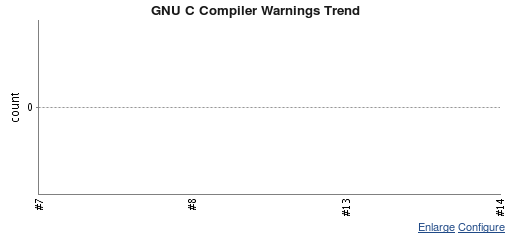

    Jenkins C++ Warnings display
    Plot of the number of compiler warnings (in this case none)

C++ Unit tests:

Java's JUnit is supported natively by Jenkins, so for one to display C++ unit test results, the C++ unit test must output a compatible XML format. Google Test is preferred as it can output JUnit compatible XML. CppUnit outputs an XML result to which you must apply an XSLT XML translation to allow it to be viewed by the JUnit plugin.

See the YoLinux tutorials:

Jenkins Project Configuration:

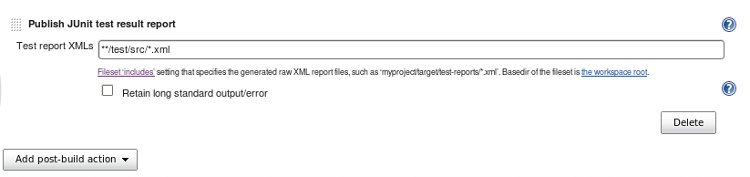

Jenkins/Hudson JUnit configuration

Specify where the XML run results will be located.

Jenkins unit test reporting:

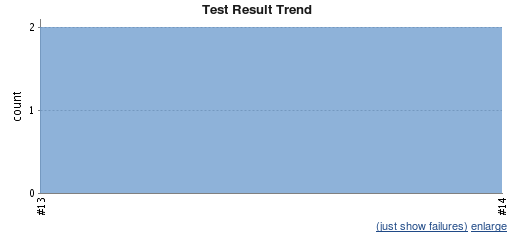

Jenkins/Hudson JUnit reporting

Note that there were two tests thus the count is two.

Gcov: code coverage

Gcov is the GNU code coverage facility used to obtain results from a run of an instrumented GNU C++ compiled application. We will use "gcovr", a Python script which runs "gcov" and formats output into an XML format compatible with the Java code coverage tool Cobertura for display by Jenkins by the Cobertura plugin. GCovr is available courtesy of the developers at Sandia National Labs.

  • Install "gcovr":
    • GCovr Home Page
    • Download: gcovr-3.2.tar.gz
    • Install Prerequisites:
      • Requires Python Pip for installation:
    • Install GCovr: pip install gcovr-3.2.tar.gz
      (This works for me)

      [Potential Pitfall]: Note that the install recommended by the GCovr website is "pip install gcovr" which would download and install the package. I got the following error:

      [prompt]$ pip install gcovr
      Downloading/unpacking gcovr
        Cannot fetch index base URL https://pypi.python.org/simple/
        Could not find any downloads that satisfy the requirement gcovr
      No distributions at all found for gcovr


  • Install Cobertura plugin:
    • Select from the Jenkins (start page) + "Manage Jenkins" + "Manage Plugins". Now select the "Available" tab and select the Cobertura Plugin.
    • Select the "Install and Restart Jenkins" button.
    • Cobertura Plugin info

  • Configure Build:
    • C++ code must be compiled with the following flags to generate the appropriate binary data files when the application is run.
      Compile: g++ -fprofile-arcs -ftest-coverage -fPIC -O0 example1.cpp -o example1
    • Run application: ./example1
      (This will generate output binary data files)
    • Ant configuration: build.xml
      (Run gcovr to generate XML for Cobertura and HTML coverage reports)

      ...
      ...
          <property name="build.native" value="./src"/>
          <property name="build.test" value="./test/src"/>
          <property name="gcovr.cmd" value="/usr/bin/gcovr"/>
      ...
      ...
          <target name="run" description="Run application and generate gmon.out" depends="compile">
          <exec dir="${build.native}" executable="exampleapp" failonerror="true">
          </exec>
        </target>

        <target name="run-test" description="Run application" depends="compile-test">
          <exec dir="${build.test}" executable="testAll" failonerror="true">
            <arg line="--gtest_output="xml:./testAll.xml""/>
          </exec>
        </target>

          <target name="gcovr-xml" description="Run gcovr and generate coverage output" depends="run,run-test">
            <exec dir="${build.native}" executable="${gcovr.cmd}" failonerror="true">
              <arg line="--branches --xml-pretty -r ."/>
              <redirector output="gcovr.xml"/>
          </exec>
          </target>

          <target gcovr-html" description="Run gcovr and generate coverage output" depends="run,run-test">
            <exec dir="${build.native}" executable="${gcovr.cmd}" failonerror="true">
              <arg line="--branches -r . --html --html-details -o gcovr-report.html"/>
            </exec>
          </target>

      ...
      ...

      Equivalent to the commands:
      • gcovr --branches --xml-pretty -r .
      • gcovr --branches -r . --html --html-details -o gcovr-report.html
      -r: specifies root directory

  • Jenkins Plugin Configuration:

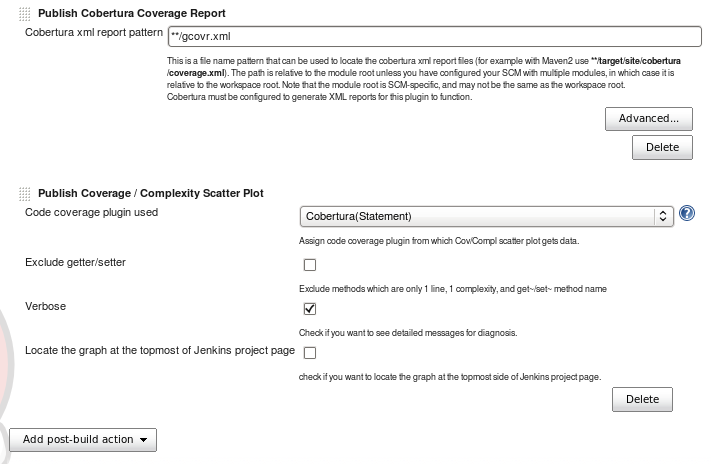

    Jenkins Cobertura configuration

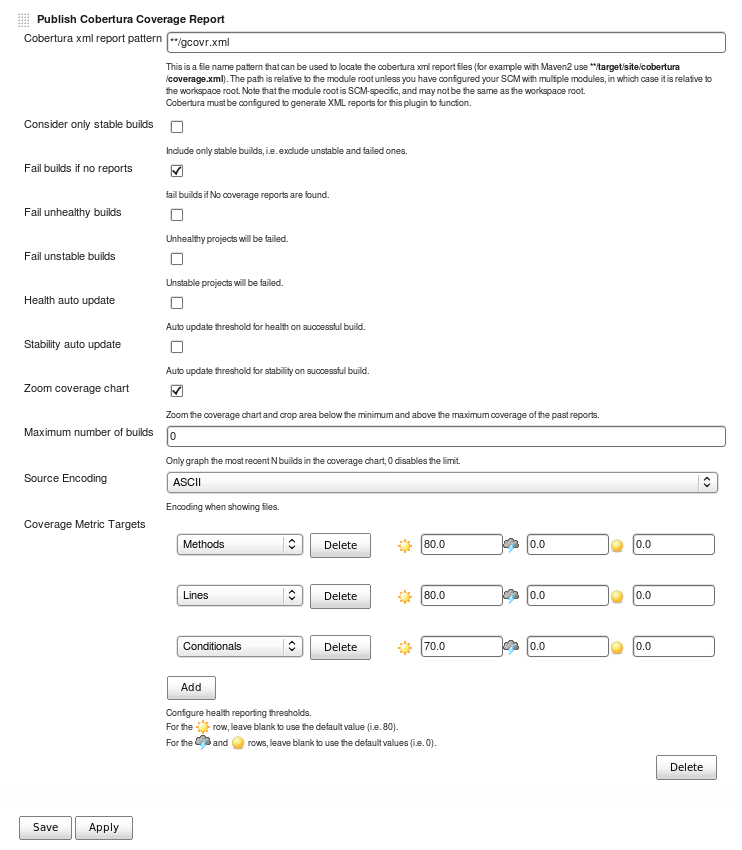

    or use the advanced configuration panel:

    Jenkins Cobertura configuration

    Specify location of XML report. Code coverage limits can be set to determine if the build is considered a pass or fail. Set to zero if code coverage will not be used to determine if the build is a pass or fail.

    Select the "Save" button to save this configuration.

  • Coverage Display:

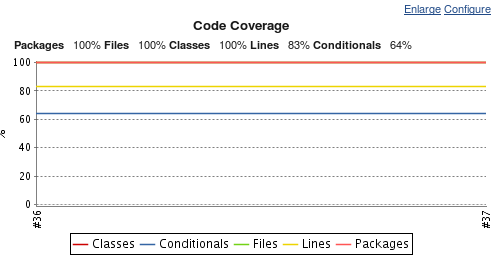

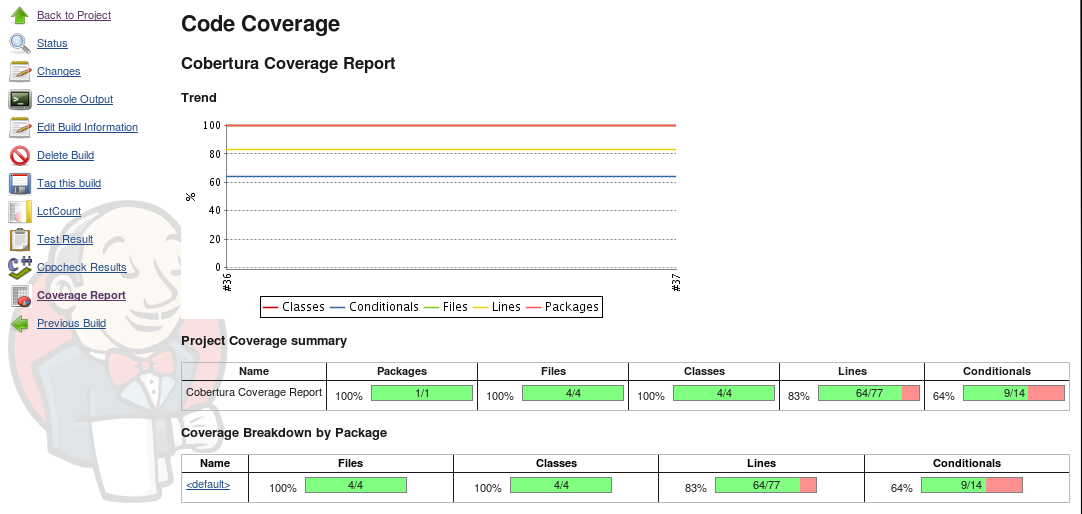

    Jenkins Cobertura for C++ display

    Select graph plot to view details.

    Jenkins Cobertura display

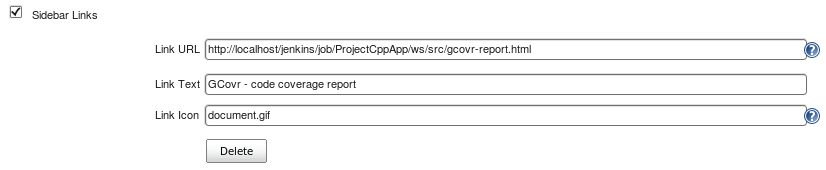

  • GCovr HTML Report: I use the "Sidebar Link" Jenkins plugin to point to the URL of the HTML report:

    Jenkins Sidebar link for HTML gcovr report

Links:

Gprof: code profiling:

The GNU gprof facility can provide a profiling report of your code execution to state how much time was spent in each function (if greater than or equal to 0.01 seconds). There is no special plugin or formatting tool. The GNU profiling report will be viewable using the Jenkins Sidebar link plugin.

  • Configure Build:
    • C++ code must be compiled with the following flags to generate the appropriate binary data files when the application is run.
      Compile: g++ -pg -O0 exampleapp.cpp -o exampleapp
    • Run application: ./exampleapp
      (This will generate output binary data file: gmon.out)
    • Run the GNU gprof tool on the binary data file to obtain the text file report.
    • Ant configuration: build.xml
      ...
      ...
          <property name="build.native" value="./src"/>
          <property name="build.test" value="./test/src"/>
          <property name="gprof.cmd" value="/usr/bin/gprof"/>
      ...
      ...
          <target name="run" description="Run application and generate gmon.out" depends="compile">
          <exec dir="${build.native}" executable="exampleapp" failonerror="true">
          </exec>
        </target>

        <target name="run-test" description="Run application" depends="compile-test">
          <exec dir="${build.test}" executable="testAll" failonerror="true">
          </exec>
        </target>

          <target name="gprof" description="Run gprof and generate profile output" depends="run,run-test">
            <exec dir="${build.native}" executable="${gprof.cmd}" failonerror="true">
              <arg value="exampleapp"/>
              <arg value="gmon.out"/>
              <redirector output="gprof_output.txt"/>
          </exec>
          </target>

      ...
      ...

      Equivalent to the commands:
      • g++ -pg -O0 exampleapp.cpp -o exampleapp
      • ./exampleapp
      • gprof exampleapp gmon.out > gprof_output.txt
      -pg: commands the compiler to instrument the code for profiling.commands the compiler to instrument the code for profiling.

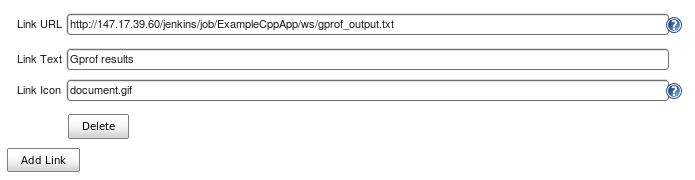

  • Gprof Report: I use the "Sidebar Link" Jenkins plugin to point to the URL of the text file report:

    Jenkins Sidebar link for gprof report
